Charge Air Cooler Inspection

  1. Plug port A.

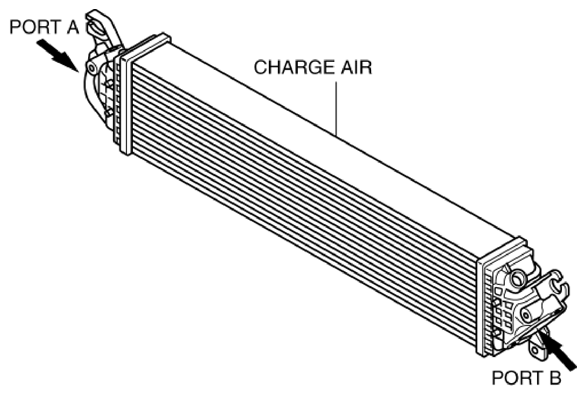

    Fig 1: Locating Charge Air Cooler Ports
    G10946788Courtesy of MAZDA MOTORS CORP.
  2. Apply pressure from port B and verity that there is no airflow.
