Trunk End Trim Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  3. Partially peel back the weather strip.

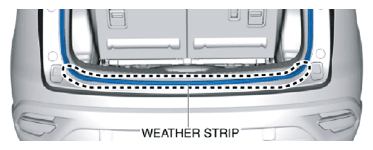

    Fig 1: Identifying Trunk End Trim Weather Strip
    G10950294Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) and remove it while detaching clips, pin A and the pin B.

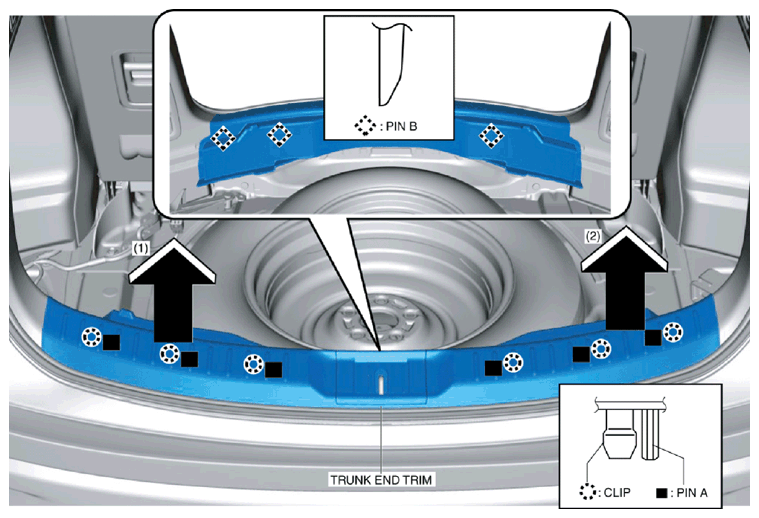

    Fig 2: Pulling Trunk End Trim
    G10950295Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
