Trunk Side Pocket Removal/Installation
- Remove the trunk covering. (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
- Remove the trunk board. (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)

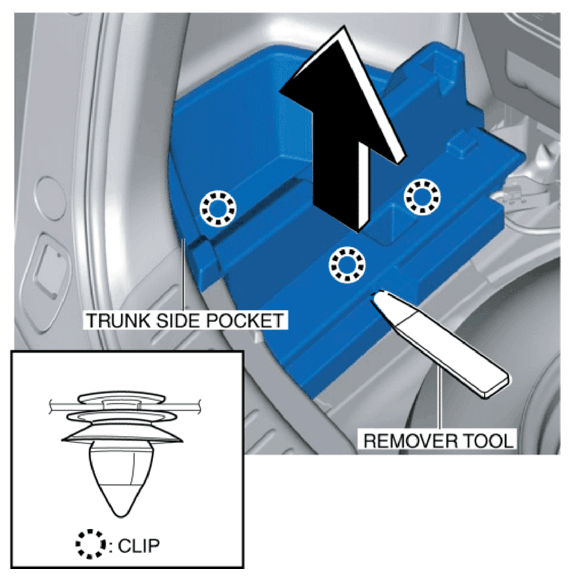

- Using the remover tool, remove the trunk side pocket (LH) in the direction of arrow shown in the figure while detaching the clips.
Courtesy of MAZDA MOTORS CORP.

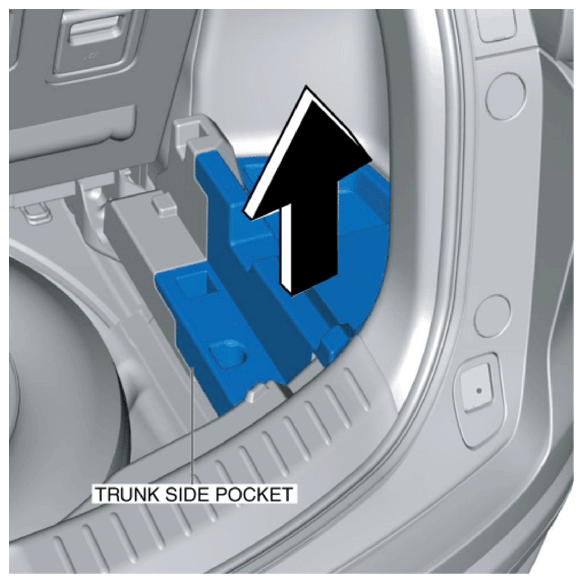

- Remove the trunk side pocket (RH) in the direction of arrow shown in the figure.
Courtesy of MAZDA MOTORS CORP.

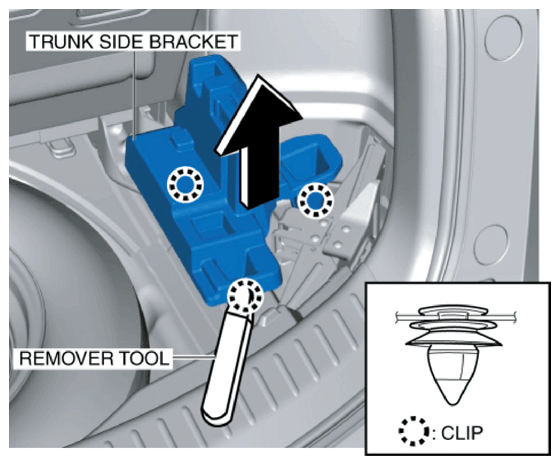

- Using the remover tool, remove the trunk side bracket in the direction of arrow shown in the figure while detaching the clips.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
