With Rear Seat Warmer System

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION .)
  3. Remove the cup holder. (See REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION .)

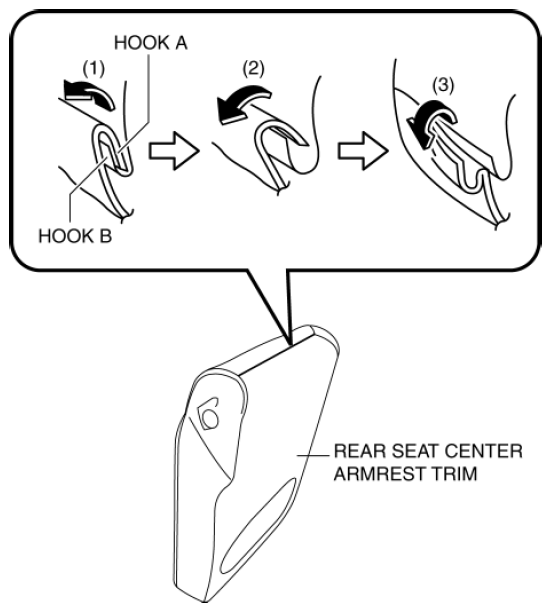

  4. Slide hook A in the order of arrows (1), (2), (3) shown in the figure to detach it from hook B.
    Fig 1: Sliding Rear Center Armrest Trim Hooks
    G10987745Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear seat center armrest trim.
  6. Install in the reverse order of removal.
