Rear Seat Warmer Switch Removal/Installation

Disconnect the negative battery cable. (with rear seat warmer system) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
While pressing the cup holder tabs in the direction of the arrows shown in the figure, lift up the cup holder to detach the cup holder tabs from the rear seat center armrest.

Fig 1: Pressing Cup Holder Tabs
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector and remove the cup holder.

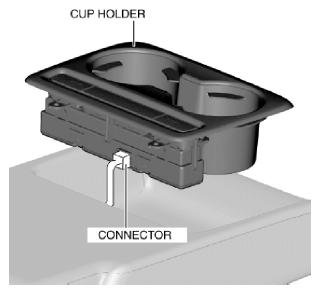

Fig 2: Identifying Cup Holder Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

Fig 3: Removing Rear Seat Warmer Switch
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat warmer switch.
Install in the reverse order of removal.
