Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove fasteners A shown in the figure.

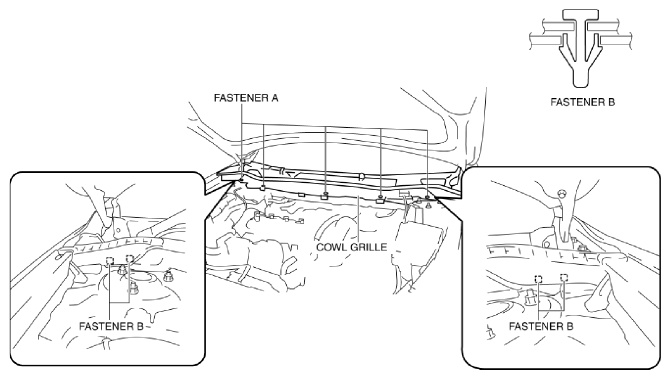

    Fig 1: Identifying Cowl Grille With Fasteners
    G10992075Courtesy of MAZDA MOTORS CORP.
  3. Remove fasteners B shown in the figure.
  4. Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  5. Pull the cowl grille in the direction of the arrow in the order of (1), (2), (3), (4), (5) and remove it while detaching tabs C, tabs D.

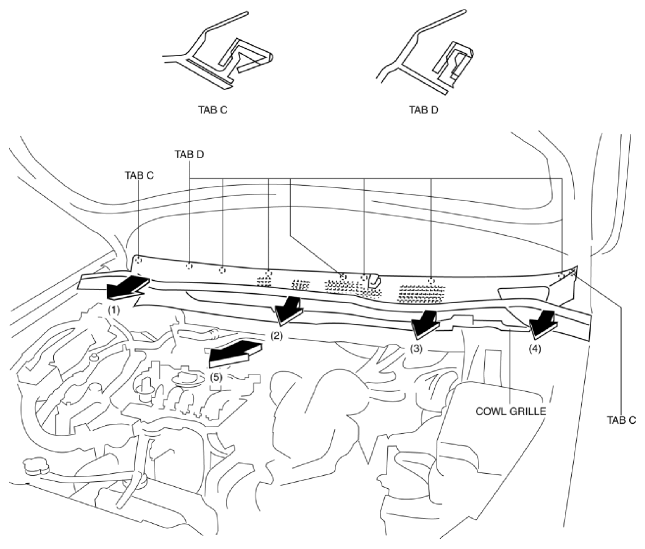

    Fig 2: Pulling Out Cowl Grille
    G10992076Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
