Windshield Washer Hose Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front splash shield No. 2 (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the windshield washer hose A from the washer motor.

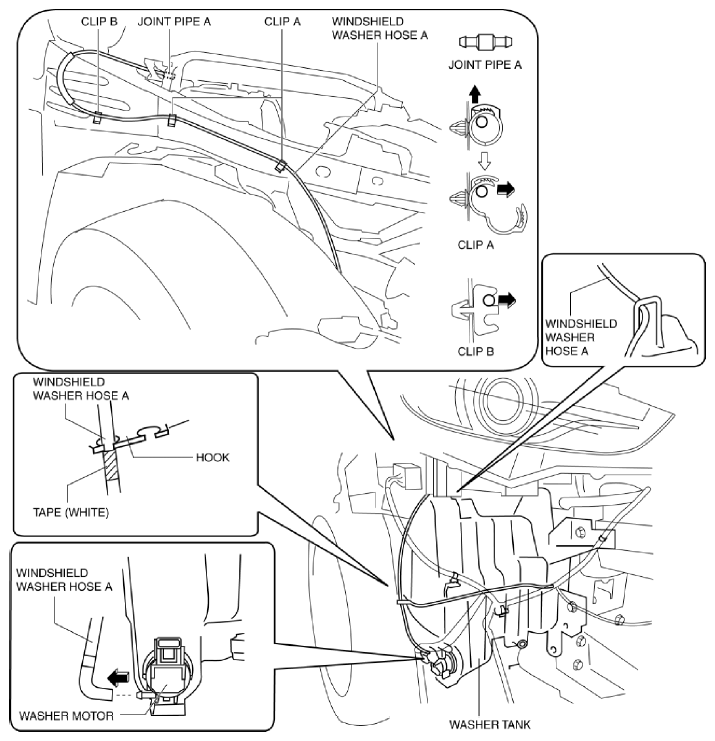

Fig 1: Disconnecting Windshield Washer Hose A From Washer Motor
Courtesy of MAZDA MOTORS CORP.
Remove the windshield washer hose A from the washer tank hook.
Remove the windshield washer hose A from clips A and B.
Disconnect the windshield washer hose A from the joint pipe A and remove it.
Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
Disconnect the windshield washer hose B from the joint pipe A.

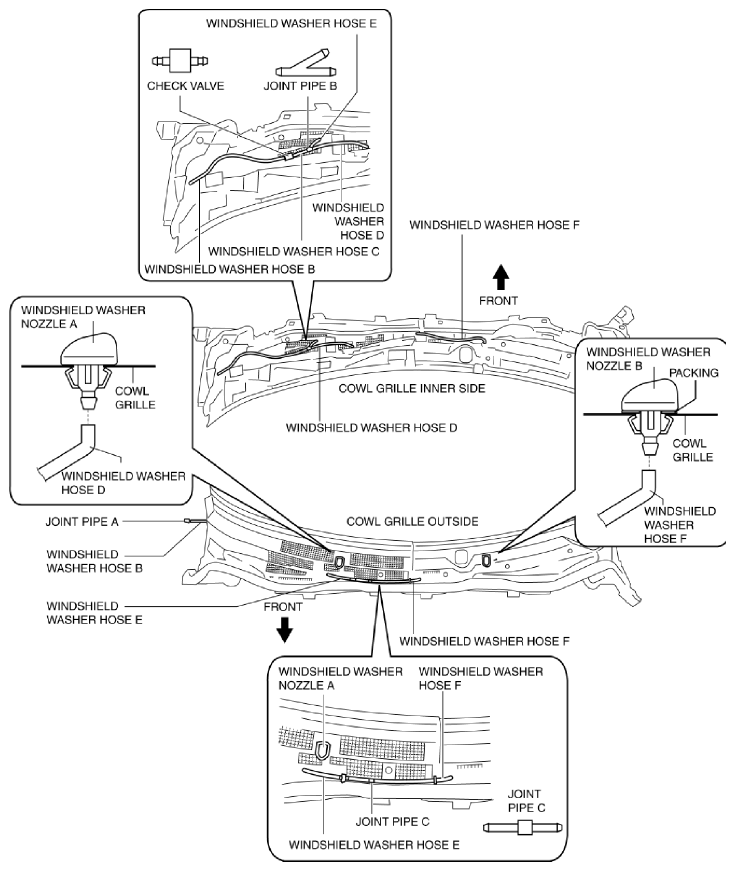

Fig 2: Disconnecting Windshield Washer Hose B From Joint Pipe A
Courtesy of MAZDA MOTORS CORP.
Disconnect the windshield washer hose B from the check valve and remove it.
Disconnect the windshield washer hose C from the check valve.
Disconnect the windshield washer hose C from the joint pipe B and remove it.
Disconnect the windshield washer hose D from the joint pipe B.
Disconnect the windshield washer hose D from the windshield washer nozzle A and remove it.
Disconnect the windshield washer hose E from the joint pipe B.
Disconnect the windshield washer hose E from the joint pipe C and remove it.
Disconnect the windshield washer hose F from the joint pipe C.
Disconnect the windshield washer hose F from the windshield washer nozzle B and remove it.
Install in the reverse order of removal.
