Oil Pressure Switch A

WARNING: This page is about a different variant/trim than selected.
  1. Select the selector lever to P position.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  5. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  7. Remove the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
  8. Insert a precision flathead screwdriver and move it in the direction of the arrow to disconnect the oil pressure switch A connector as shown in the figure.
    CAUTION:
    • Do not scratch the oil pressure switch A and oil pressure switch connector A with the precision flathead screwdriver.
    • When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

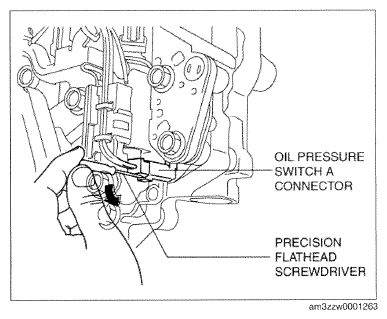

    Fig 1: Disconnecting Oil Pressure Switch Connector Using Precision Flathead Screwdriver
    G09783150Courtesy of MAZDA MOTORS CORP.
  9. Remove the oil pressure switch A fitting bolts.

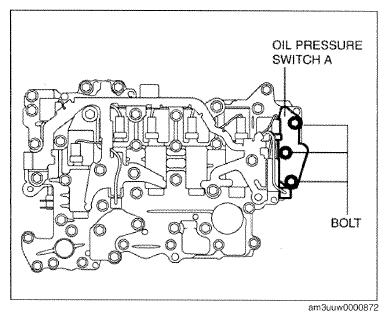

    Fig 2: Identifying Oil Pressure Switch And Bolts
    G09783151Courtesy of MAZDA MOTORS CORP.
  10. Detach tab shown in the figure and remove the oil pressure switch A from the control valve body.
    Fig 3: Identifying Tab
    G09783152Courtesy of MAZDA MOTORS CORP.
  11. Install the oil pressure switch A to the control valve body.
  12. Verify that the tab is attached correctly.
    Fig 4: Identifying Tab
    G09783153Courtesy of MAZDA MOTORS CORP.
  13. Install the oil pressure switch A fitting bolts.

    Tightening torque

    9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}

    Fig 5: Identifying Oil Pressure Switch And Bolts
    G09783154Courtesy of MAZDA MOTORS CORP.
  14. Connect the oil pressure switch A connector.
  15. Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  16. Install the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
  17. Install the hose clamp. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  18. Connect the control valve body connector. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
    CAUTION:
    • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
    • Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
    • Insert the connector straight as the connector terminal could be damaged.
    • Rotate the connector lever until a click is heard.

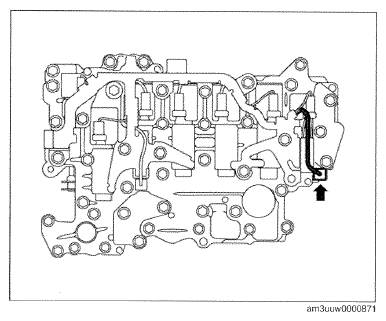

    Fig 6: Locating Oil Pressure Switch Connector
    G09783155Courtesy of MAZDA MOTORS CORP.
  19. Add the ATE (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  20. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  21. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  22. Perform the "Initial Learning" (oil pressure switch A Replacement). (See INITIAL LEARNING .)
  23. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  24. Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
