FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners shown in the figure.

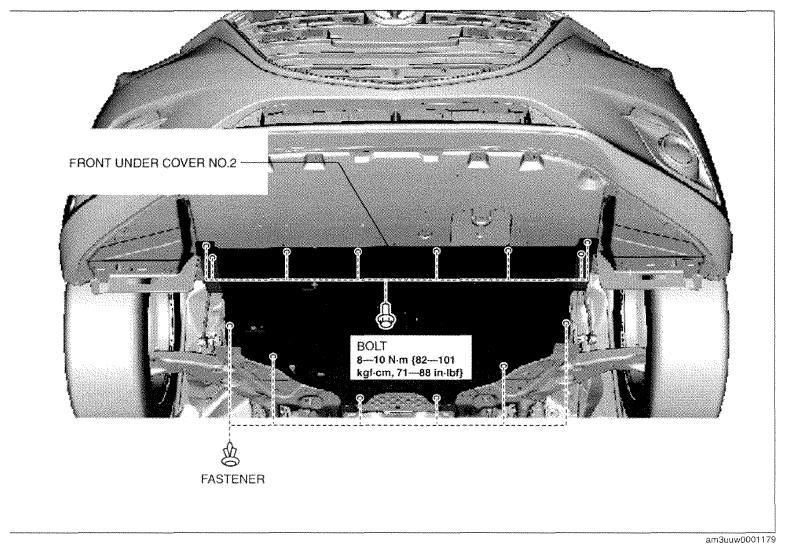

    Fig 1: Removing Front Under Cover Bolts And Fasteners
    G09772154Courtesy of MAZDA MOTORS CORP.
  3. Remove the front under cover No. 2.
  4. Install in the reverse order of removal.
