Oil Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
  3. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  4. Disconnect the wiring harness from the front crossmember. (Vehicle with i-ELOOP)
  5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

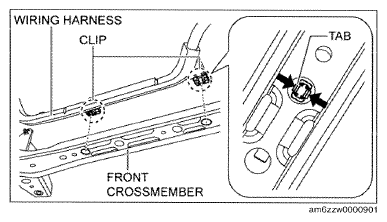

    Fig 1: Locating Tab Of Front Crossmember
    G09783239Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.

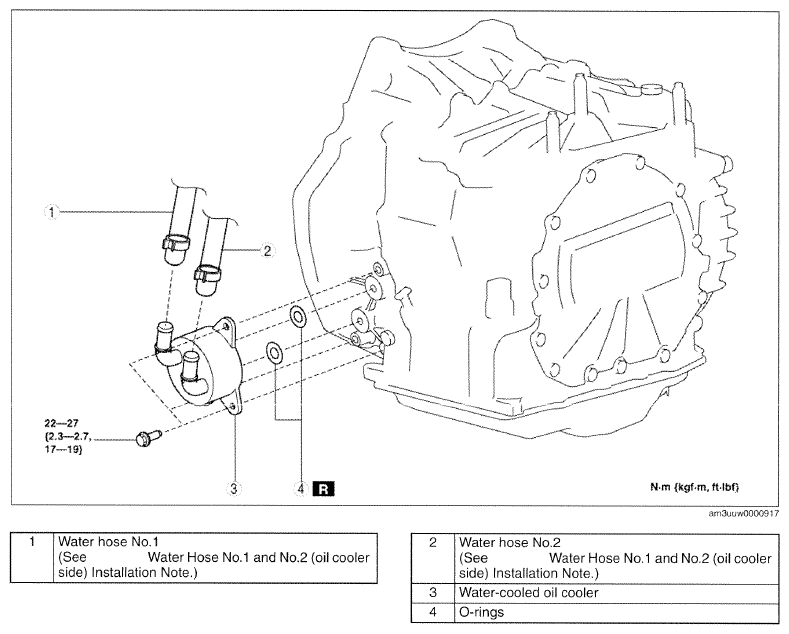

    Fig 2: Water Hose, O-Rings And Water Cooled Oil Cooler With Torque Specifications
    G09783240Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  9. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  10. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
