FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Remove the bolts, screws and fasteners shown in the figure.

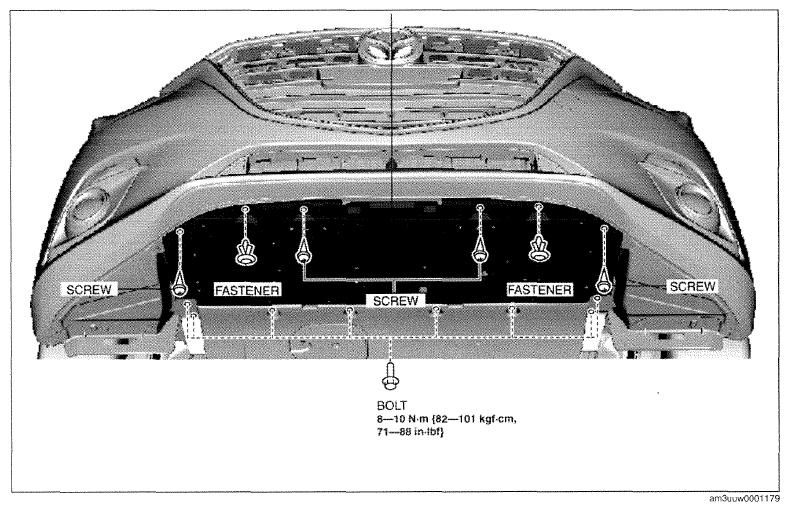

    Fig 1: Removing Front Under Cover Bolts With Torque Specifications
    G09772152Courtesy of MAZDA MOTORS CORP.
  2. Remove the front under cover No. 1 in the direction of the arrow shown in the figure while detaching the guide.

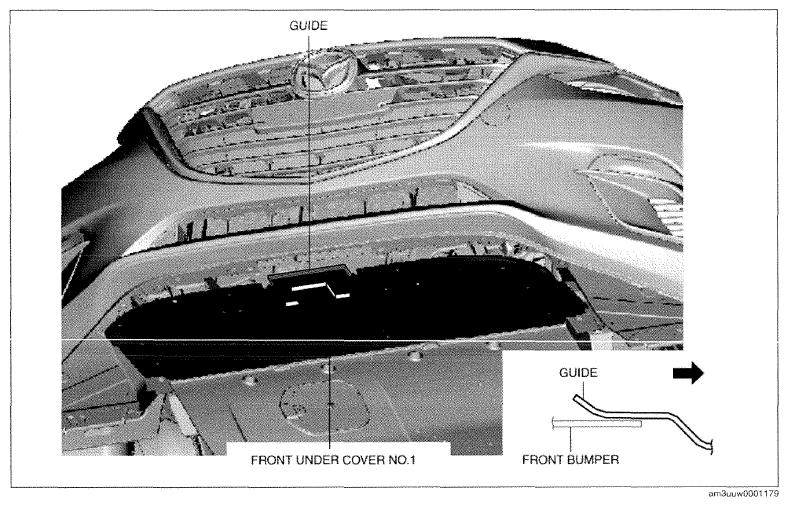

    Fig 2: Removing Front Under Cover Guide
    G09772153Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
