Trunk Side Upper Trim Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  4. Remove the fastener.

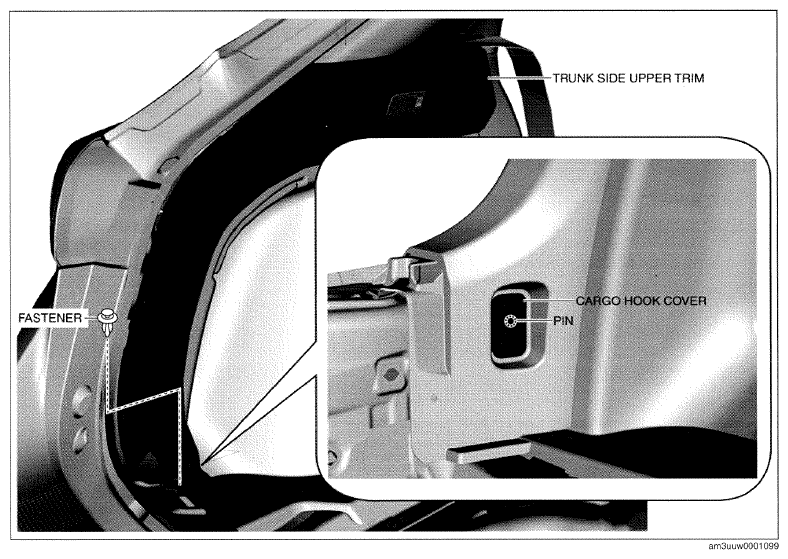

    Fig 1: Identifying Cargo Hook Cover With Pin
    G09772353Courtesy of MAZDA MOTORS CORP.
  5. Remove the pin, then remove the cargo hook cover.
  6. Partially peel back the seaming welt.
  7. Pull the trunk side upper trim in the direction of the arrow in the order of (1), (2), (3), (4) and remove it while detaching clips A, clips B and hooks.

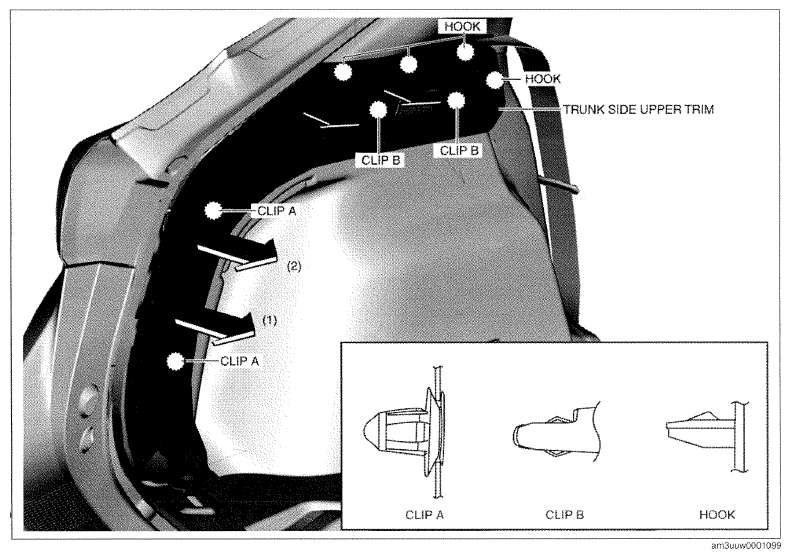

    Fig 2: Pulling Trunk Side Upper Trim
    G09772354Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the cargo room light connector. (LH only)
  9. Install in the reverse order of removal.
