Rear Package Tray Removal/Installation

  1. Move the hooks in the direction of arrows (1) shown in the figure to disengage them from the strap hangers.

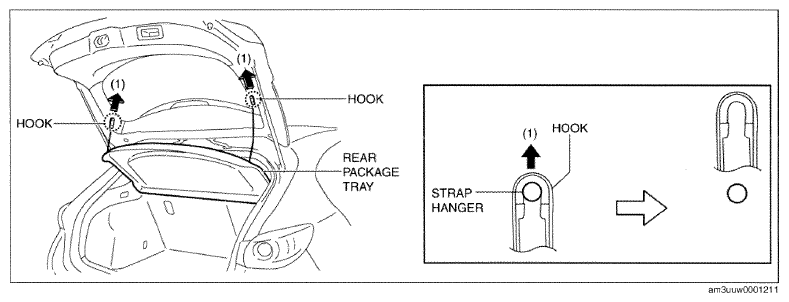

    Fig 1: Moving Rear Package Tray Hook
    G09772325Courtesy of MAZDA MOTORS CORP.
  2. Move the rear package tray in the direction of the arrow in the order of arrow (2), (3) shown in the figure and unhook the cover from the pins of the trunk side upper trim.

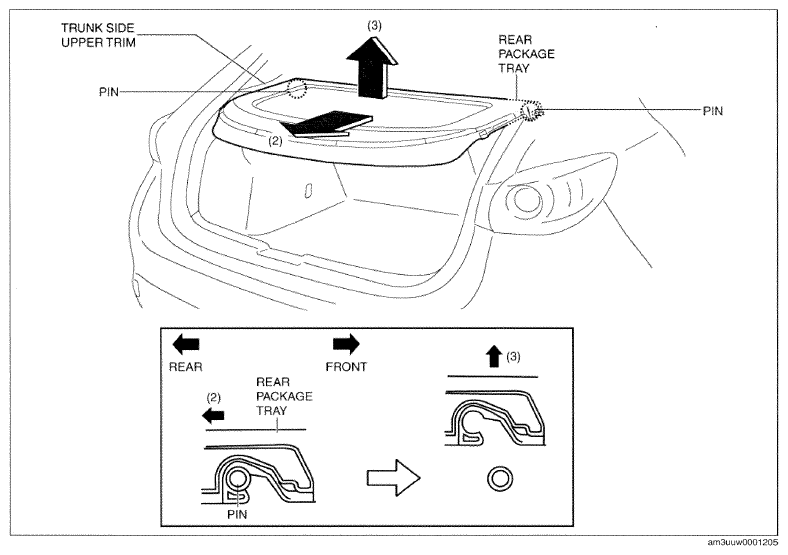

    Fig 2: Moving Rear Package Tray
    G09772326Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
