Fuel-Filler Lid Removal/Installation

  1. Push the tether clip in the direction of arrow shown in the figure and while detaching the tabs.

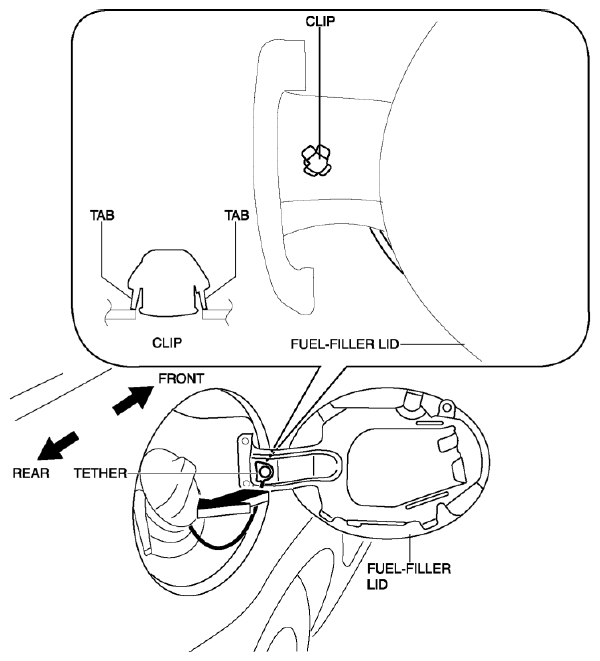

    Fig 1: Pushing Tether Clip
    G08152711
  2. Remove the bolts.

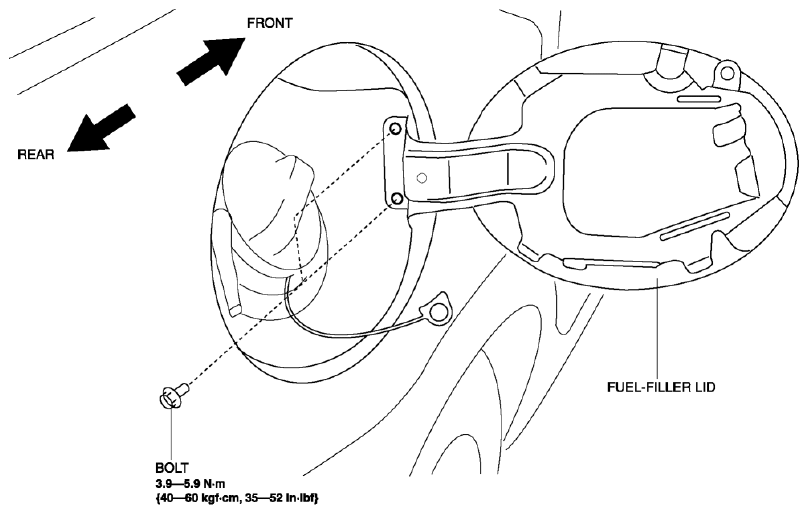

    Fig 2: Fuel-Filler Lid And Bolts With Fastener Tightening Torque Specifications Table
    G08152712
  3. Remove the fuel-filler lid.
  4. Install in the reverse order of removal.
  5. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
