Fuel-Filler Lid Adjustment

Verify that the gap and height difference between the fuel-filler lid and body.

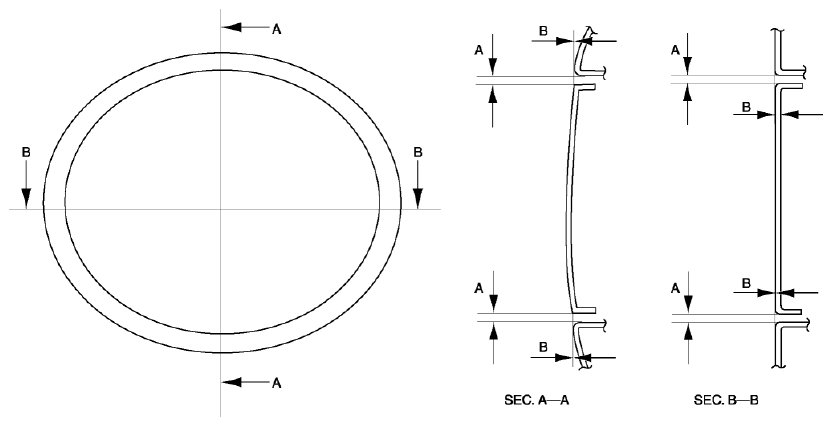

Fig 1: Identifying Gap And Height Difference Between Fuel-Filler Lid And Body

Standard clearance
- a: 1.7-3.7 mm {0.07-0.14 in}
- b: -1.5-0.5 mm {-0.05-0.01 in}
- If the gap and height difference is not in the position indicated, perform the gap and height difference adjustment.
Loosen the bolts and adjust the fuel-filler lid.

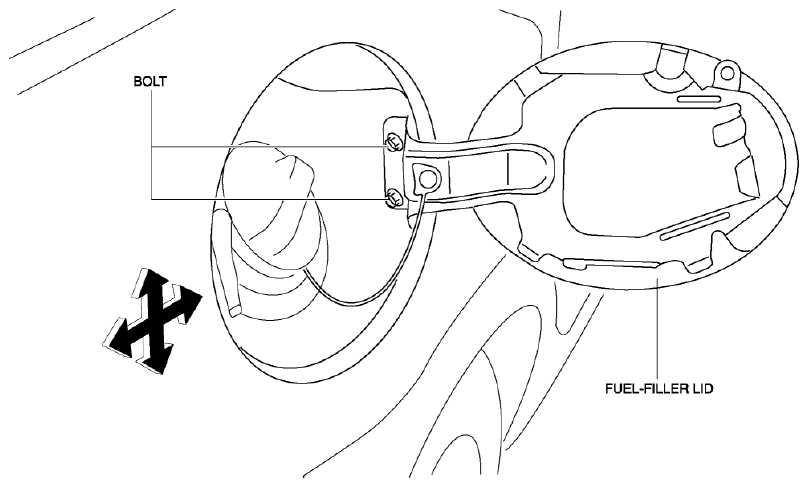

Fig 2: Identifying Fuel-Filler Lid And Bolts
Tighten the bolts. (See FUEL-FILLER LID REMOVAL/INSTALLATION .)
