Magnetic Clutch Disassembly/Assembly [Full-Auto Air Conditioner]: Notes

  1. Disassemble in the order indicated in the table.

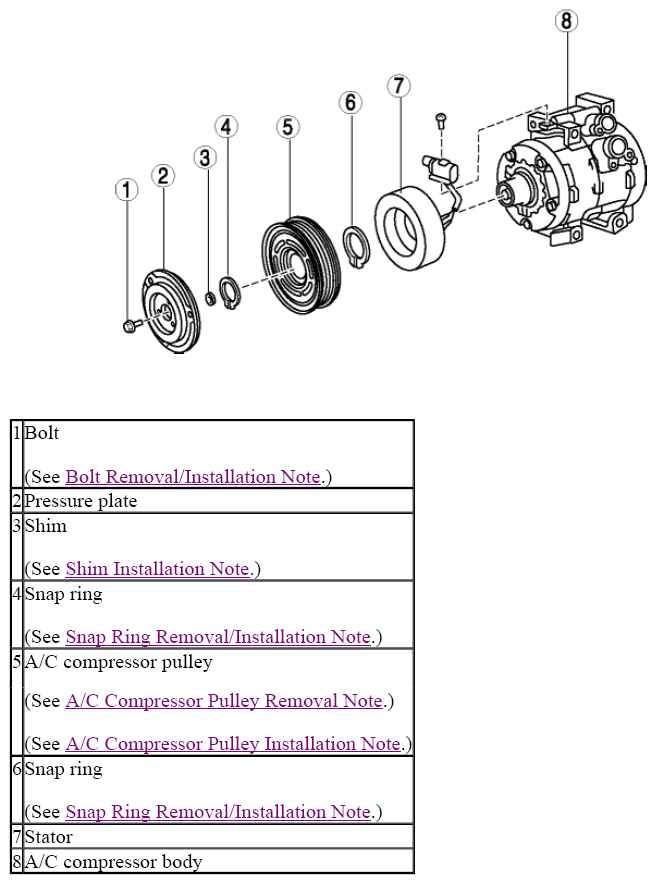

    Fig 1: Exploded View Of Magnetic Clutch - Full-Auto Air Conditioner
    G08150974
  2. Assemble in the reverse order of disassembly.
  3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER] .)
