Magnetic Clutch Adjustment [Full-Auto Air Conditioner]
- Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.
- Verify the clearance.

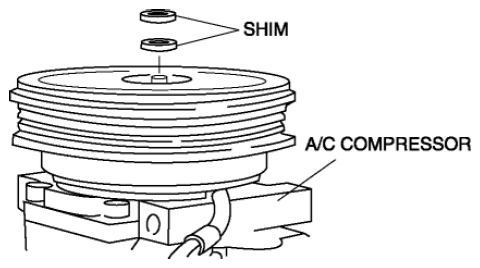

- If not within the specification, remove the pressure plate and adjust the clearance by changing the shim (0.2 mm {0.008 in}, 0.5 mm {0.02 in}
) or the number of shims.
Clearance
- 0.35-0.65 mm {0.014-0.025 in}
- If not within the specification, remove the pressure plate and adjust the clearance by changing the shim (0.2 mm {0.008 in}, 0.5 mm {0.02 in}
) or the number of shims.
