Front Power Metal Oxide Semiconductor Field Effect Transistor (Power Mos FET) Removal/Installation [Full-Auto Air Conditioner]

  1. Disconnect the negative battery cable.
  2. Remove the side wall (RH). (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

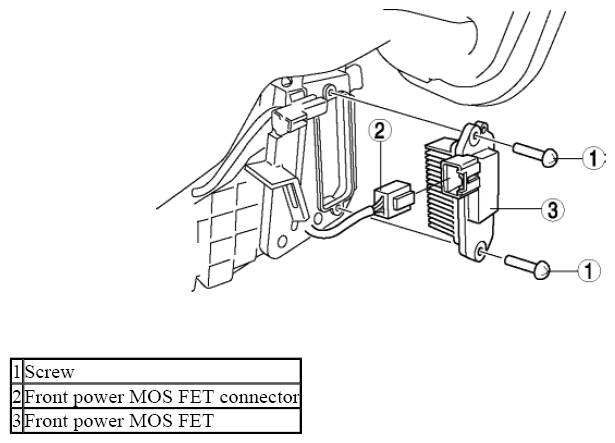

    Fig 1: Front Power MOS FET With Connector And Screw
    G08150970
  5. Install in the reverse order of removal.
