Dashboard Under Cover Removal/Installation

  1. Detach the hooks A and pins B in the direction of arrow (1) shown in the figure.

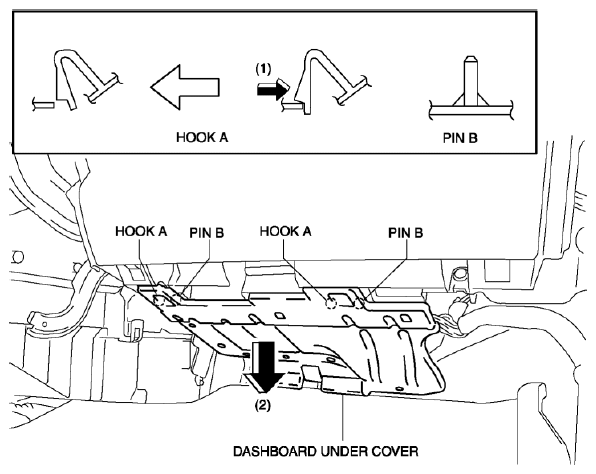

    Fig 1: Detaching Dashboard Under Cover Hooks A And Pins B
    G08153212
  2. Pull the dashboard under cover in the direction of arrow (2).
  3. Remove the dashboard under cover in the direction of arrow (3), then remove the tab C.

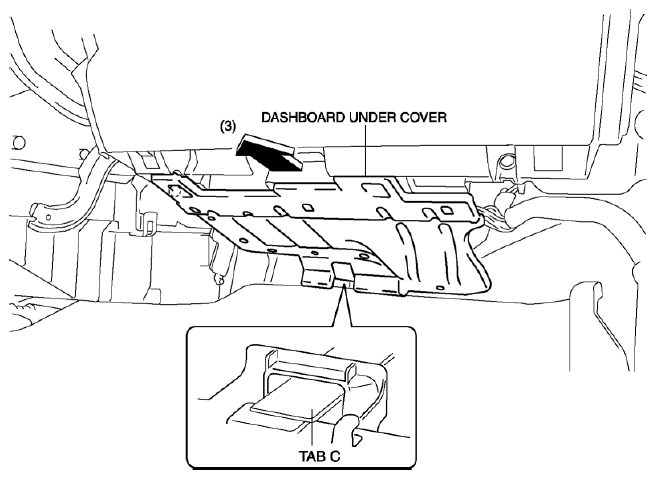

    Fig 2: Removing Dashboard Under Cover
    G08153213
  4. Install in the reverse order of removal.
