Front Blower Motor Installation [Full-Auto Air Conditioner]: Notes

  1. Install the SST (49 B061 015A)  to the front blower motor.

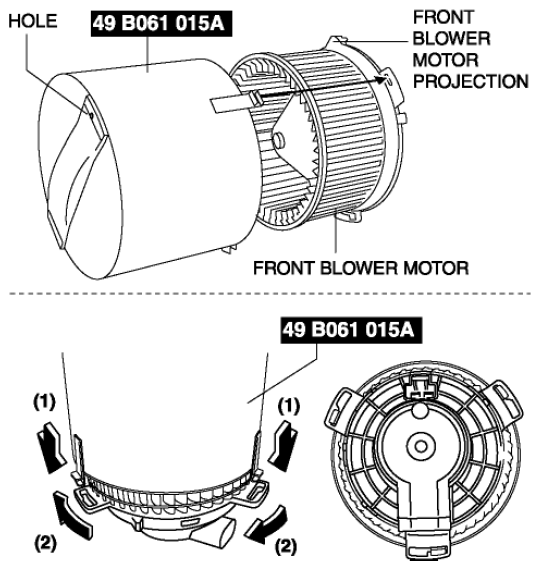

    Fig 1: Installing SST (49 B061 015A) To Front Blower Motor
    G08150956
  2. Install the front blower motor with the SST (49 B061 015A)  installed, to the A/C unit.
  3. Position the front blower motor projection upward and install the front blower motor to the A/C unit.
    CAUTION:
    • To prevent damage to the sirocco fan, install the front blower motor being careful that the front blower motor does not interfere with the A/C unit. Also, another person must hold the front blower motor at the installation position.

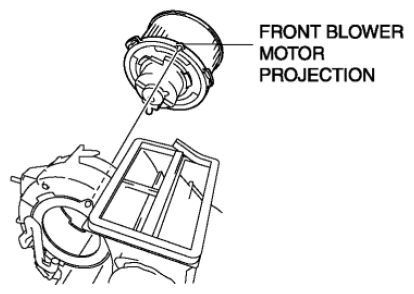

    Fig 2: Identifying Front Blower Motor Projection
    G08150957
  4. To install, rotate the front blower motor cover until a click is heard.
    NOTE:
    • Install the front blower motor cover from the driver-side.

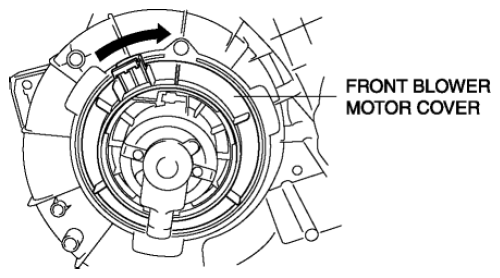

    Fig 3: Rotating Front Blower Motor Cover
    G08150958
  5. Connect the front blower motor connector as shown in the figure.

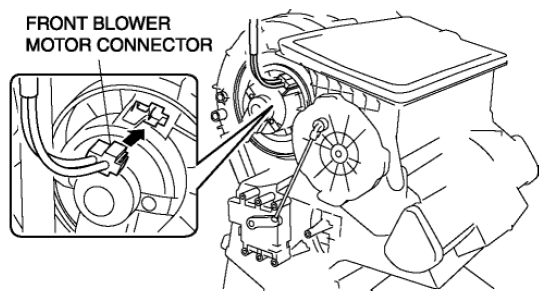

    Fig 4: Front Blower Motor Connector
    G08150959
  6. Install the front blower motor cooling pipe.

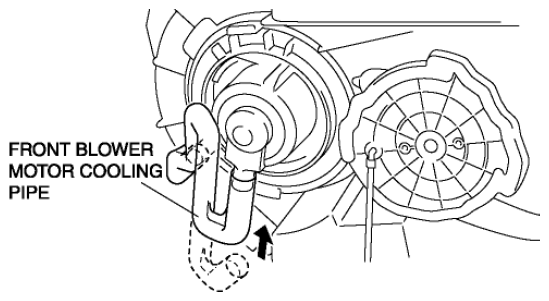

    Fig 5: Front Blower Motor Cooling Pipe
    G08150960

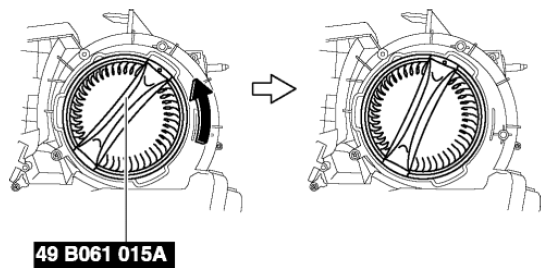

  7. Rotate the SST (49 B061 015A)  in the direction shown by the arrow.
    Fig 6: Rotating SST (49 B061 015A)
    G08150961
  8. Remove the SST (49 B061 015A)  from the front blower motor.

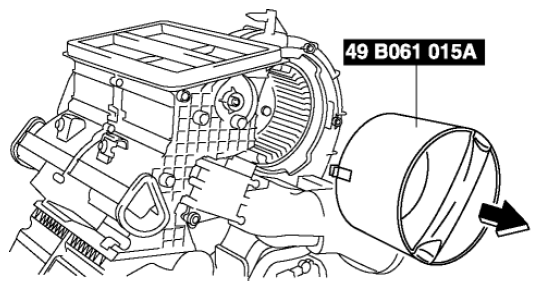

    Fig 7: Removing SST (49 B061 015A) From Front Blower Motor
    G08150962
  9. Install the air guide.
    CAUTION:
    • Install the front blower case while pressing the dashboard insulator, otherwise the front blower case could be damaged.
  10. Insert the screw into the front blower case.

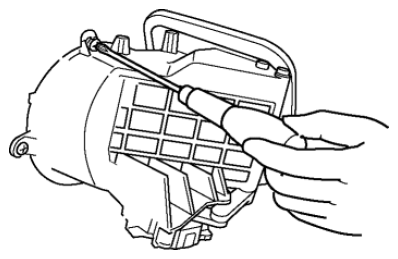

    Fig 8: Inserting Screw Into Front Blower Case
    G08150963
  11. Connect the air intake actuator connector.
  12. Insert the front blower case in the direction shown in the figure.

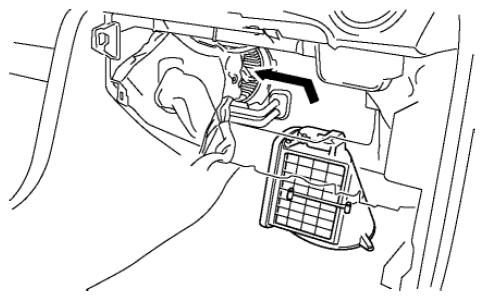

    Fig 9: Inserting Front Blower Case
    G08150964
  13. Insert and rotating it in the directions of the arrows shown in the figure.

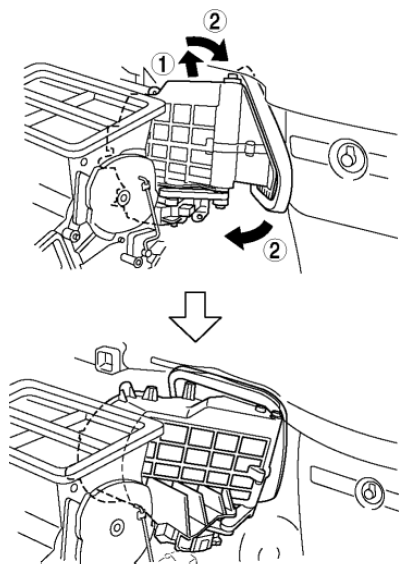

    Fig 10: Rotating Front Blower Case
    G08150965
  14. Install the following parts:
    1. Brake pedal (See BRAKE PEDAL REMOVAL/INSTALLATION .)
    2. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 2.5] .)
    3. Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
    4. Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    5. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    6. Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    8. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
    9. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    10. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    11. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    12. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    13. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    14. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    15. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    16. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    17. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    18. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    19. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    20. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  15. Connect the negative battery cable.
