Airflow Mode Actuator Removal/Installation [Full-Auto Air Conditioner]

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Front heat duct (driver-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the airflow mode actuator connector.

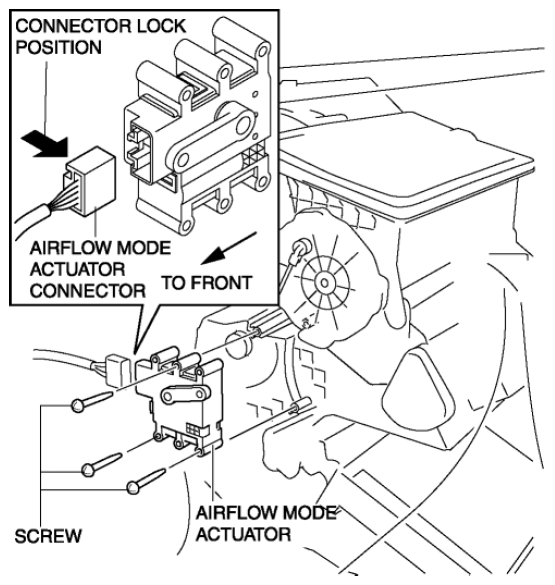

    Fig 1: Airflow Mode Actuator Connector
    G08150940
  5. Remove the airflow mode actuator.
  6. Install in the reverse order of removal.
