Ambient Temperature Sensor Removal/Installation [Full-Auto Air Conditioner]

  1. Disconnect the negative battery cable.
  2. Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the ambient temperature sensor connector.

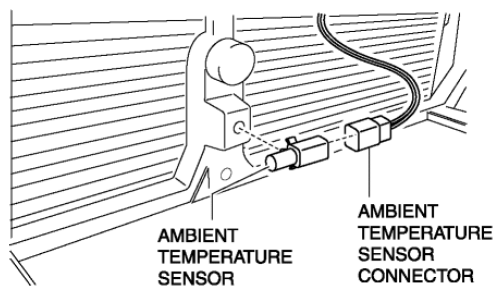

    Fig 1: Disconnecting Ambient Temperature Sensor Connector
    G08150988
  4. Remove the ambient temperature sensor.
  5. Install in the reverse order of removal.
