Air Intake Actuator Removal/Installation [Full-Auto Air Conditioner]
- Disconnect the negative battery cable.
- Remove the following parts:
- Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
- Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
- Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
- Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
- Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
- Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)

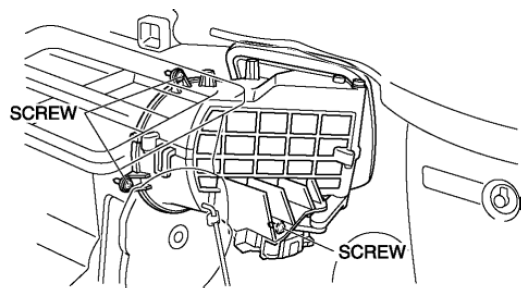

- Remove the screws shown in the figure and slide the front blower case.
CAUTION:
- Slide the front blower case while pressing the dashboard insulator, otherwise the front blower case could be damaged.
- Disconnect the air intake actuator connector.

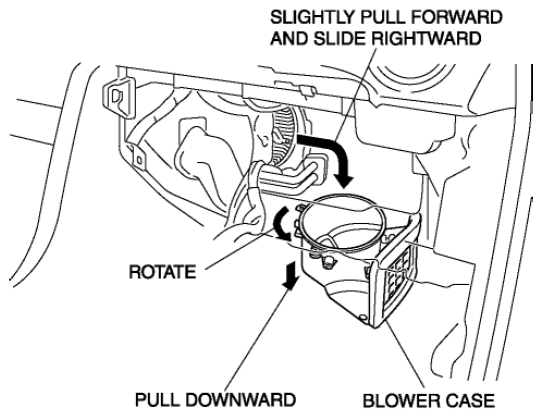

- Remove the front blower case shown in the figure.

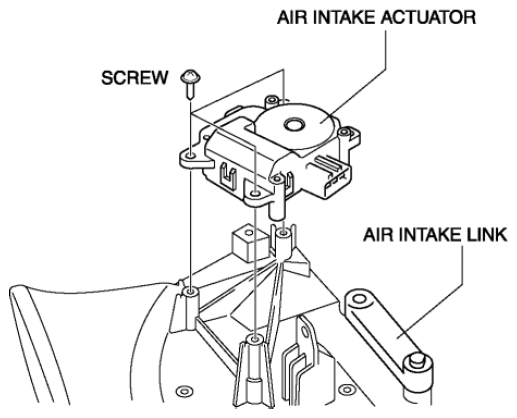

- Remove the screws.
- Remove the air intake actuator.
- Remove the air intake link.
- Install in the reverse order of removal.
