Rear Heat Duct Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    5. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    6. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    7. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    8. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    9. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    10. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    11. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    12. Shift lever component and bracket (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    13. Selector lever component and bracket (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    14. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    15. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Turn the floor covering over.
  4. Remove in the order indicated in the table.

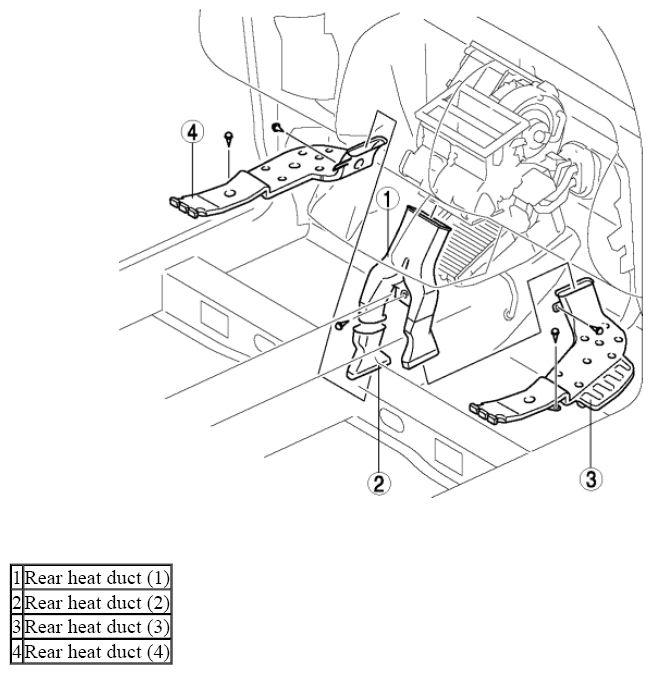

    Fig 1: Identifying Rear Heat Ducts
    G08150907
  5. Install in the reverse order of removal.
