Manual Transaxle Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.
- Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)

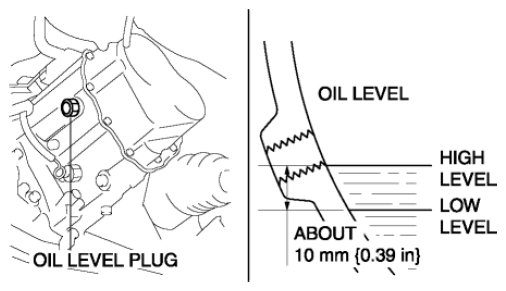

- Remove the oil level plug and gasket.
- Verify that the manual transaxle oil is near the brim of the plug port.
- If the manual transaxle oil level is lower than the lower limit, add manual transaxle oil.
Manual transaxle oil grade
- API service GL-4
Manual transaxle oil viscosity
- SAE 75W-80
- If the manual transaxle oil level is lower than the lower limit, add manual transaxle oil.
