Clutch Pedal Height Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the distance from the upper surface of the pedal pad.
Pedal height (Reference Value)

210-216 mm {8.27-8.50 in}
Adjust the height if necessary. (See CLUTCH PEDAL HEIGHT .)

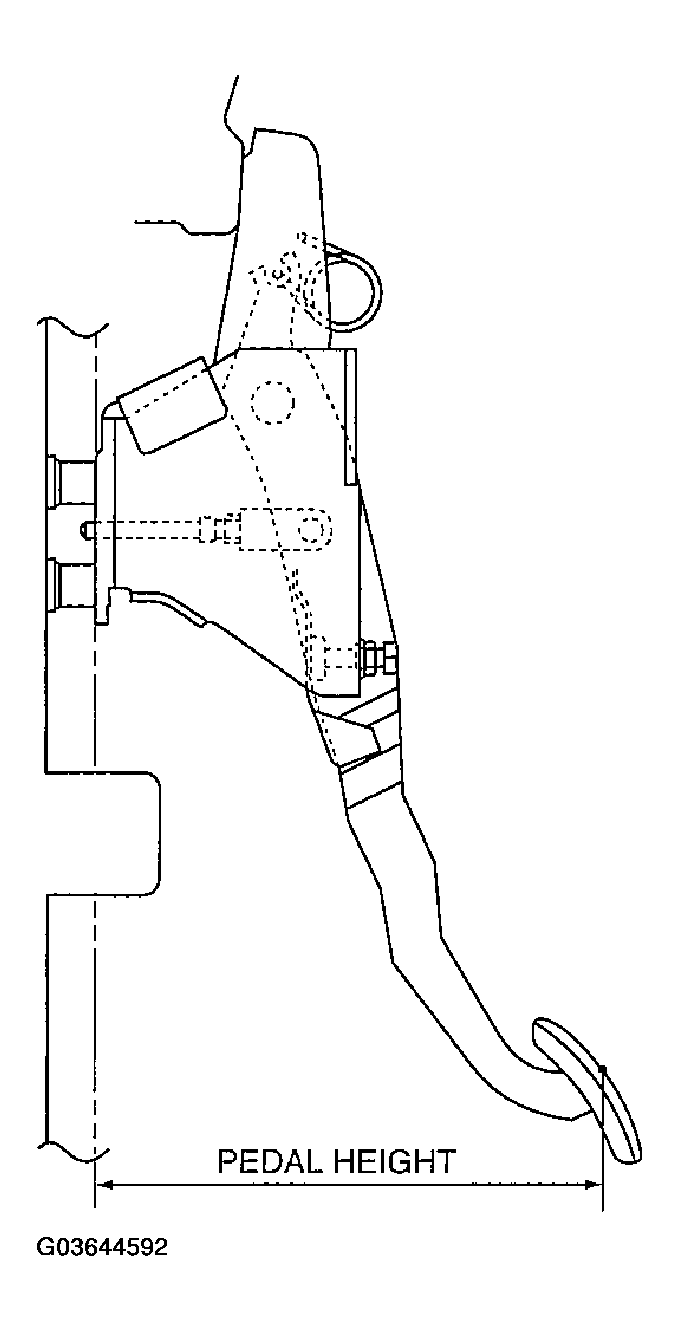

Fig 1: Measuring Distance From Upper Surface Of Pedal Pad
Courtesy of MAZDA MOTORS CORP.
