Clutch Pedal Height

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the distance from the upper surface of the pedal pad.
- If not as specified, adjust the pedal height by turning adjustment bolt B and locknut A.
  Pedal height (Reference value)

  210-216 mm {8.27-8.50 in}

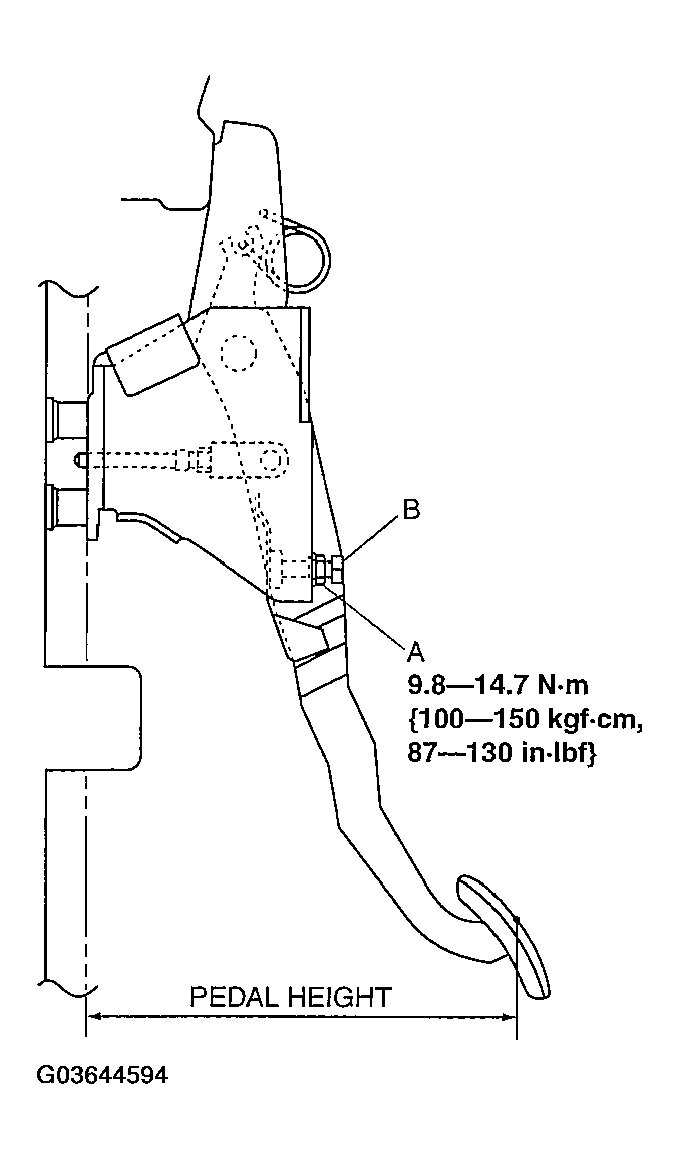

  Fig 1: Measuring Distance From Upper Surface Of Pedal Pad (Torque Specs)
  Courtesy of MAZDA MOTORS CORP.
