Continuity Inspection
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the AIR pump connector.

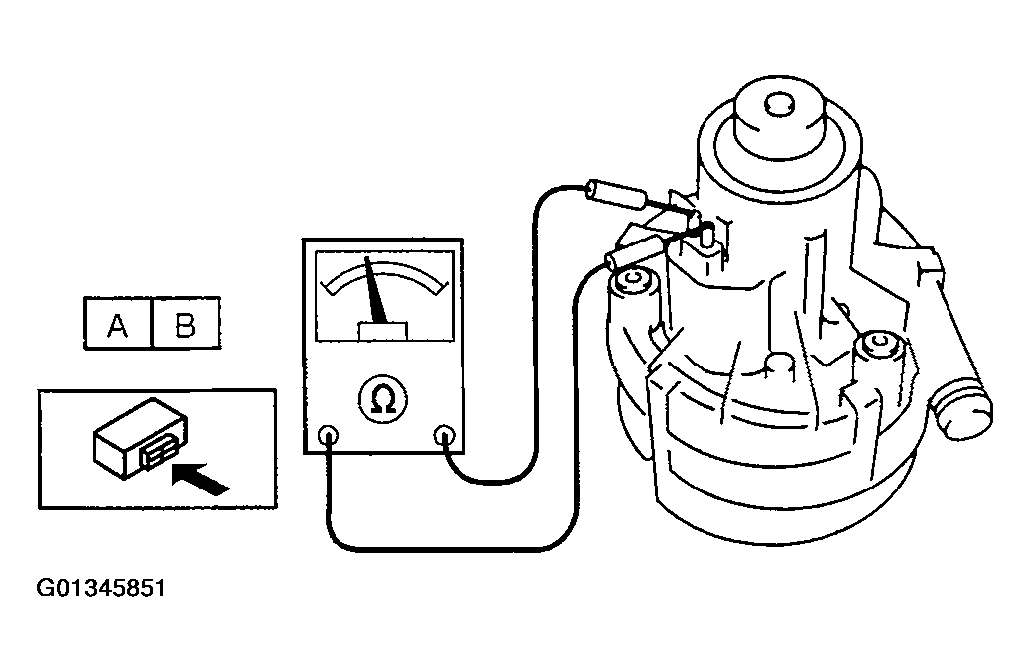

- Inspect for continuity between the AIR pump terminals A and B.
- If there is continuity, inspect the related wiring harnesses.
- If there is no continuity, replace the AIR pump. (See SECONDARY AIR INJECTION (AIR) PUMP REMOVAL/INSTALLATION .)
