Secondary Air Injection (Air) Pump Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated. See Fig 1.

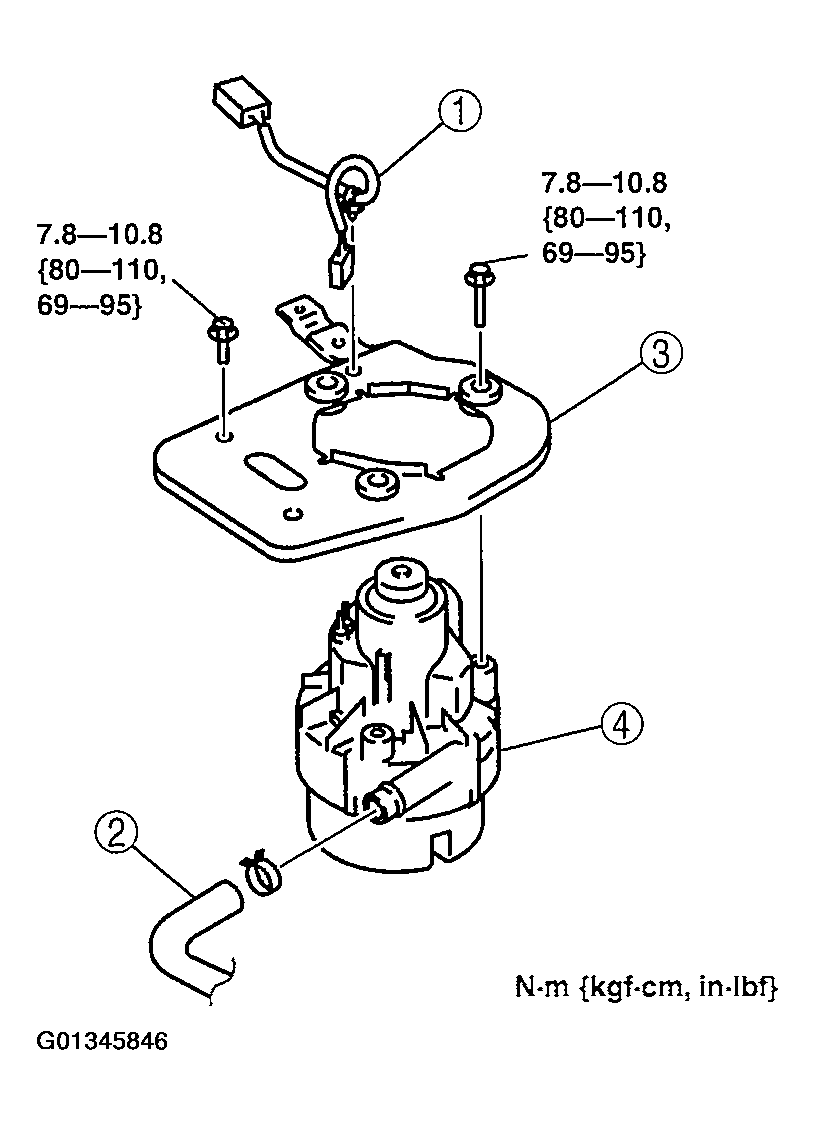

Fig 1: Removal Order Of Secondary Air Injection Pump
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Secondary Air Injection Pump
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
