No.3 Engine Mount Removal Note

  1. Remove the following parts to install the SST.
    1. Air cleaner assembly (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    2. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    3. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    4. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
  2. Protect the windshield using tape.
    Fig 1: Protecting Windshield Using Tape
    G08151923
  3. Remove the No.1 brake fluid reserve tank installation nuts shown in the figure.

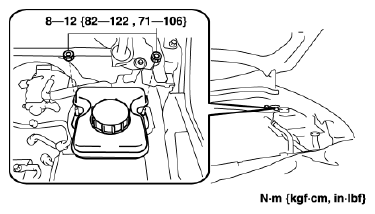

    Fig 2: No.1 Brake Fluid Reserve Tank Nuts With Torque Specifications
    G08151924
  4. Set No.1 brake fluid reserve tank out of the way so that it does not interfere with the service performed with the hose connected.
  5. Install the SST using the following procedures.

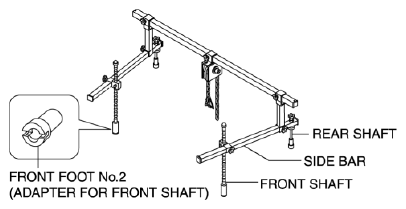

    Fig 3: Identifying SST And Front Foot No.2
    G08151925
    CAUTION:
    • Refer to the SST instruction manual for the basic handing procedure.
  1. As shown in the figure, set the rear shafts of the SST  to the left and right shock absorber bolts.

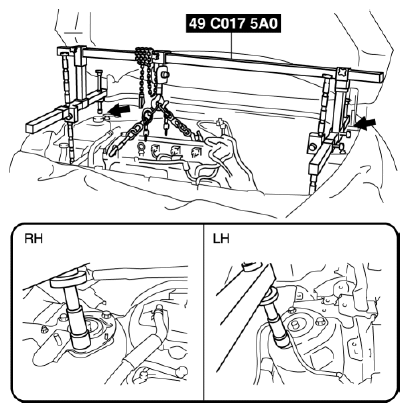

    Fig 4: Setting Rear Shafts Of SST To Left And Right Shock Absorber Bolts
    G08151926
  2. Install front foot No.2 to the left/right front shaft of the SST, then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.

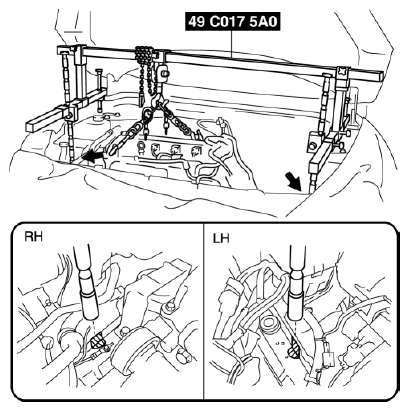

    Fig 5: Installing Front Foot No.2 To Left/Right Front Shaft Of SST
    G08151927
  3. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal. Make sure each joint is securely tightened.

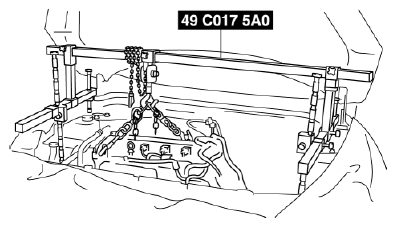

    Fig 6: Adjusting Positions Of SST Side Bars
    G08151928
