Oil Control Valve (OCV) Removal/Installation

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
2. Disconnect the negative battery cable.
3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
4. Disconnect the wiring harness.
5. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
6. Remove the ventilation hose.
7. Remove the oil level gauge.
8. Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION .)
9. Remove in the order indicated in the table.
10. Install in the reverse order of removal.

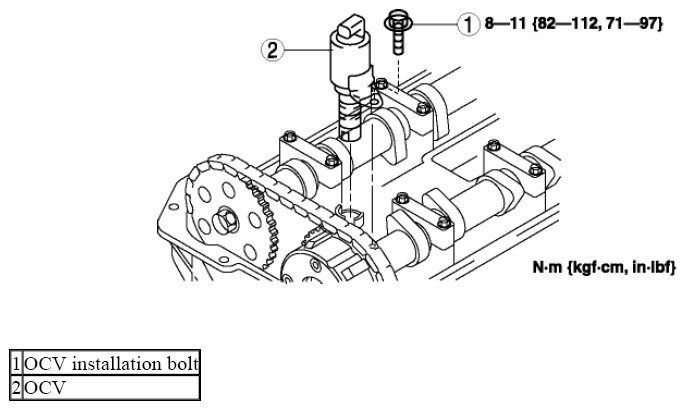

Fig 1: OCV And OCV Installation Bolt With Torque Specifications
