Plug Hole Plate Removal/Installation

  1. Remove the plug hole plate in the order indicated in the figure.
    NOTE:
    • Lift off and remove the plug hole plate from the installation areas as shown in the figure.

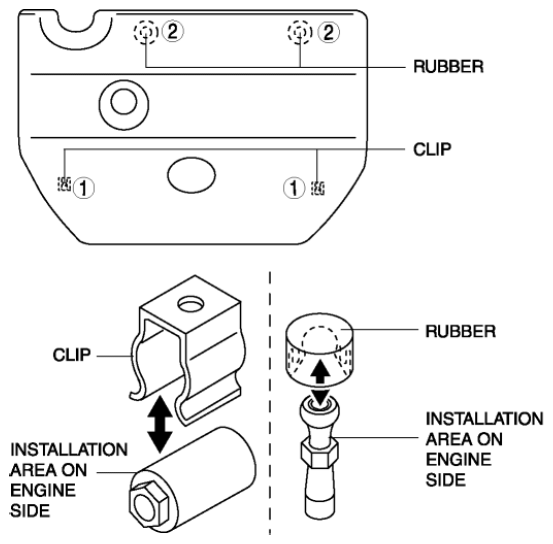

    Fig 1: Removing Plug Hole Plate
    G08151853
  2. Install the plug hole plate in the reverse order of removal.
