Drive Belt Removal/Installation

  1. Remove the aerodynamic under cover and splash shield as a single unit. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .) (See SPLASH SHIELD REMOVAL/INSTALLATION .)

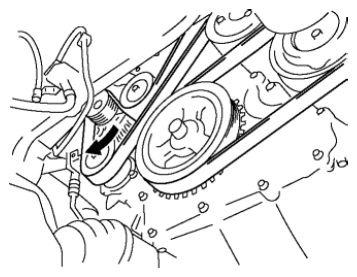

  2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
    Fig 1: Rotating Drive Belt Auto Tensioner
    G08151855
  3. Install in the reverse order of removal.
