Drive Belt Inspection

NOTE:
  • Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.
  1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

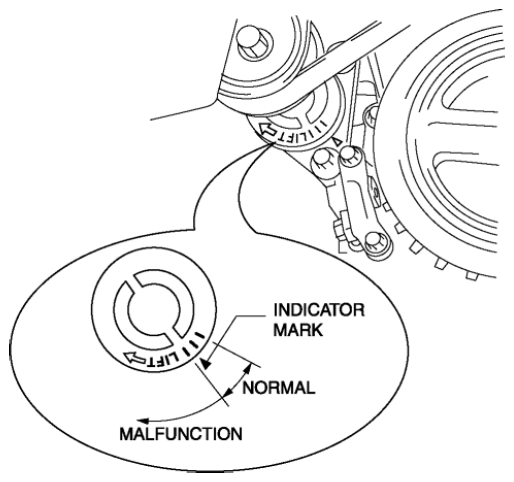

    Fig 1: Inspecting Drive Belt
    G08151854
