Parking Brake Switch Inspection

Disconnect the parking brake switch connector. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Identifying Parking Brake Switch Connector Terminals
- If not as indicated in the table, replace the parking brake switch. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)

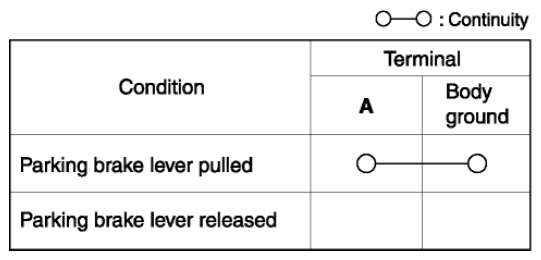

  Fig 2: Parking Brake Switch Continuity Chart
