Parking Brake Lever Removal/Installation

1. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
2. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
3. Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION .)

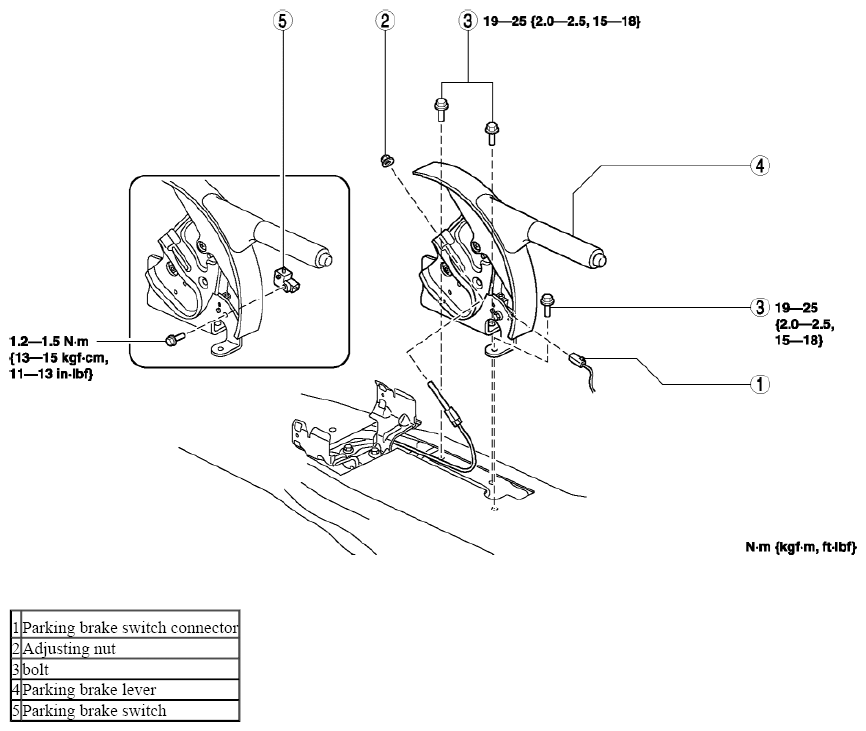

Fig 1: Exploded View Of Parking Brake Lever With Torque Specifications
