Third-Row Seat Cushion Trim Removal/Installation

Remove the following parts:
1. Third-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION THIRD-ROW SEAT REMOVAL/INSTALLATION .)
2. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)

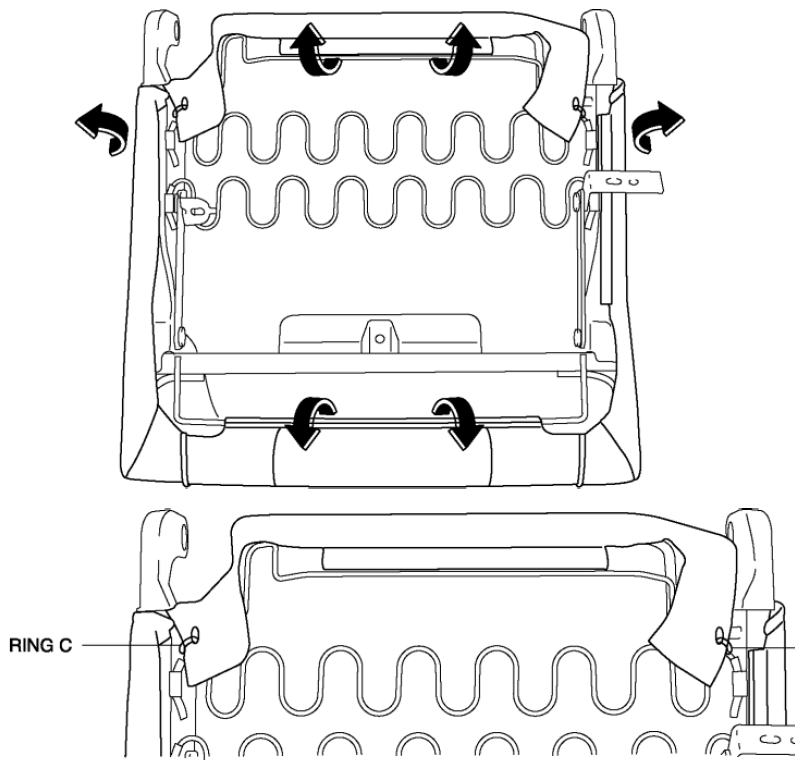

Remove the rings C, then remove the third-row seat cushion trim and the third-row seat cushion pad from the third-row seat cushion frame.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 1: Removing Third-Row Seat Cushion Trim

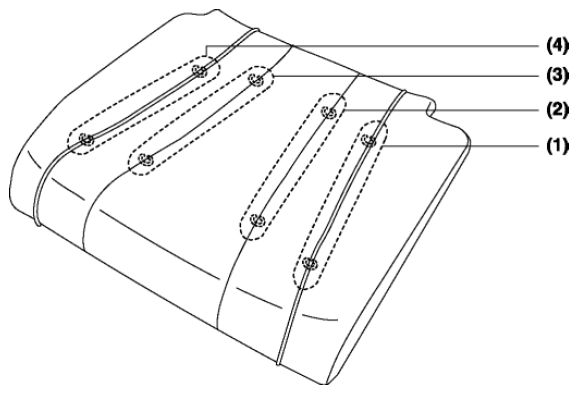

Remove the rings C in the order of (1), (2), (3), (4), then remove the third-row seat cushion trim from the third-row seat cushion pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 2: Identifying Second-Row Seat Cushion Pad And Rings C
Install in the reverse order of removal.
