Third-Row Seat Cushion Removal/Installation

  1. Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
  2. Remove the bolts.

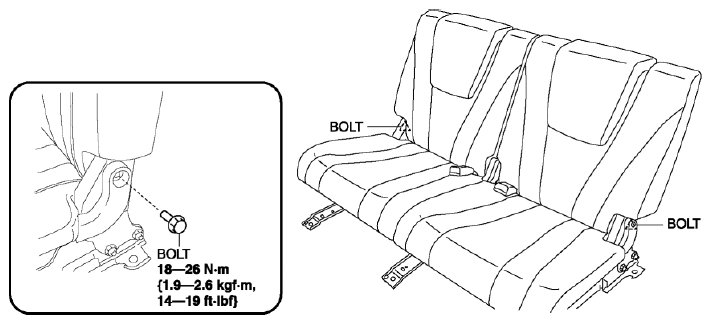

    Fig 1: Third-Row Seat Bolts With Torque Specifications
    G08152973
  3. Remove the covers, then remove the bolts.

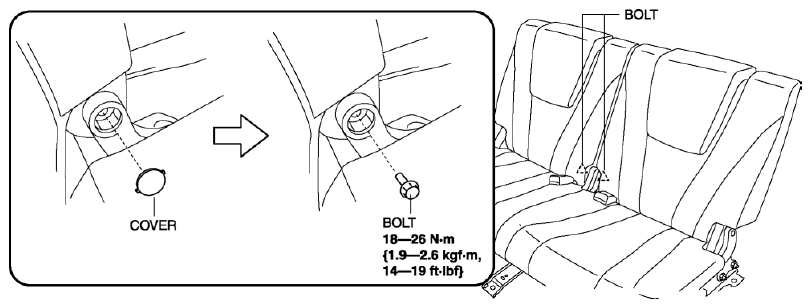

    Fig 2: Third-Row Seat Covers And Bolt With Torque Specifications
    G08152974
  4. Remove the bolts, then remove the third-row seat cushion.

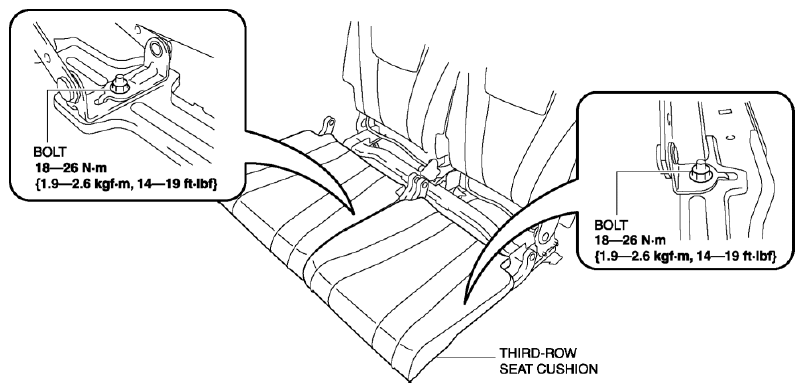

    Fig 3: Third-Row Seat Cushion Bolts With Torque Specifications
    G08152975
  5. Install in the reverse order of removal.
