Second-Row Seat Slide Adjuster Cover Removal/Installation

  1. Remove the following parts:
    1. Second-row seat back component (See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    2. Second-row seat side cover (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Second-row seat under tray (See SECOND-ROW SEAT UNDER TRAY REMOVAL/INSTALLATION .)
    4. Clips using the fastener remover, then remove the second-row seat slide adjuster cover.

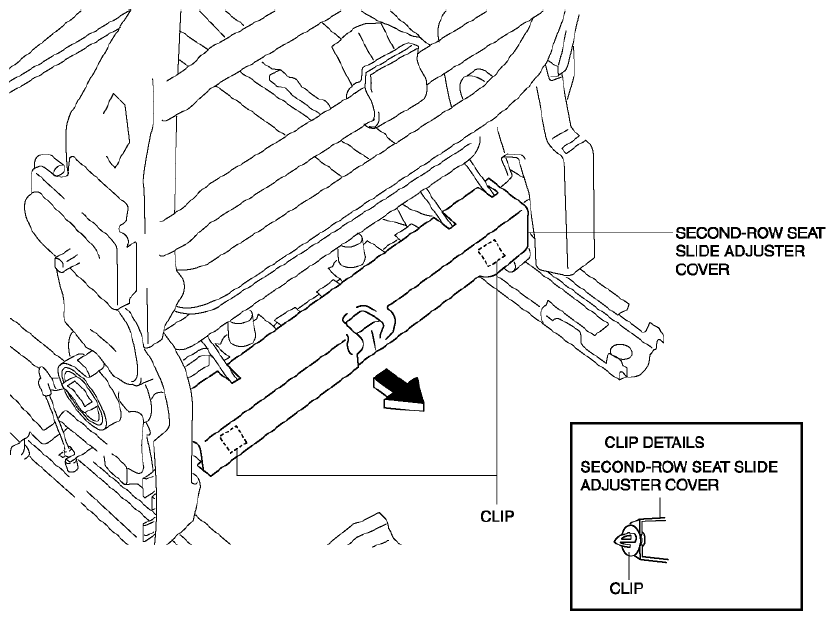

    Fig 1: Second-Row Seat Slide Adjuster Cover Clips
    G08152967
  2. Install in the reverse order of removal.
