Second-Row Seat Under Tray Removal/Installation

  1. Remove the second-row seat side cover. (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
  2. Raise the second-row seat cushion.

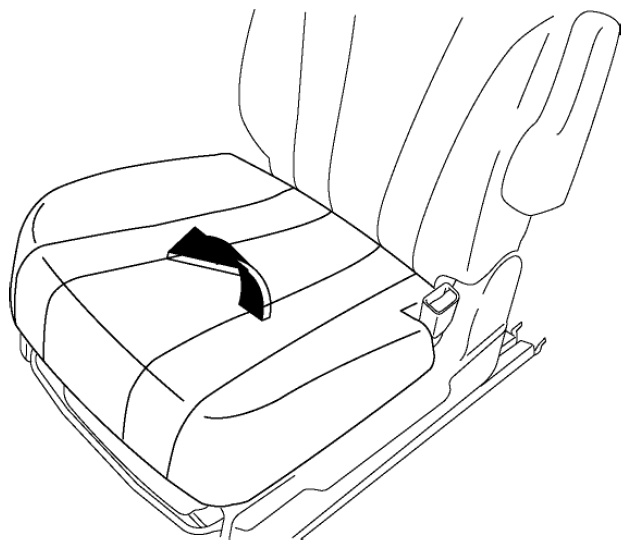

    Fig 1: Raising Second-Row Seat Cushion
    G08152968
  3. Remove the second-row seat under tray.

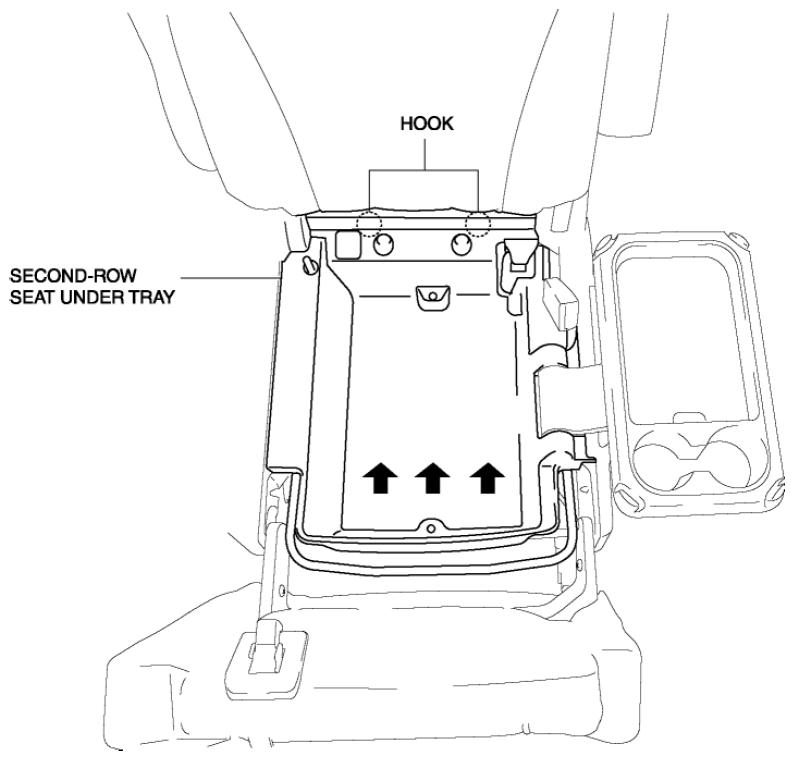

    Fig 2: Removing Second-Row Seat Under Tray
    G08152969
  4. Install in the reverse order of removal.
