Second-Row Seat Center Tray Removal/Installation

  1. Remove the second-row seat under tray. (See SECOND-ROW SEAT UNDER TRAY REMOVAL/INSTALLATION .)
  2. Remove the nut, remove the KARAKURI storage box.

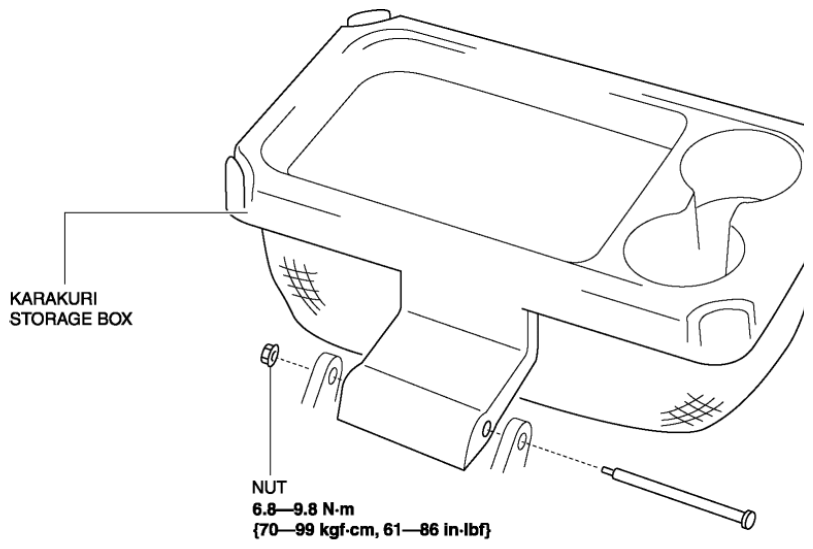

    Fig 1: LARAKURI Storage Box Nut With Torque Specifications
    G08152970
  3. Install in the reverse order of removal.
