Center Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the center cowl grille while detaching the hook A and pins B.

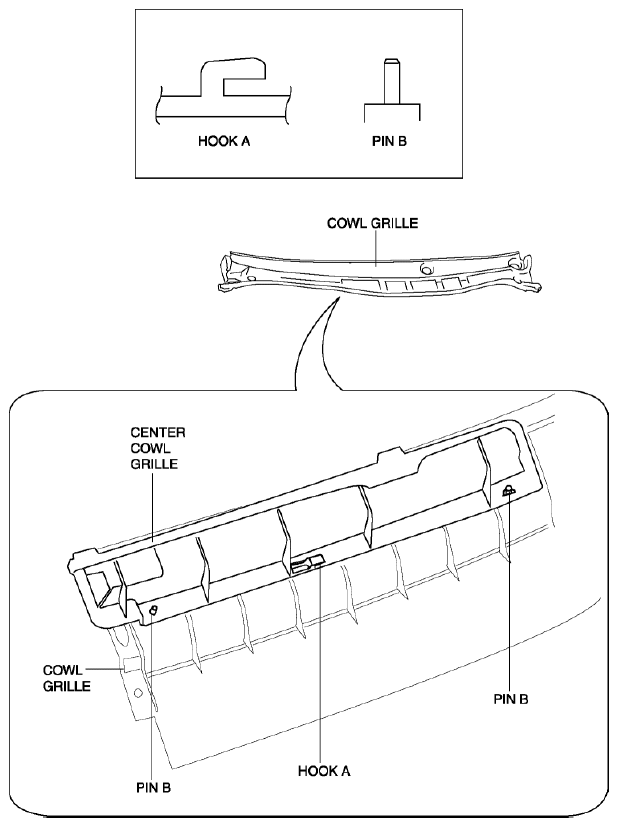

    Fig 1: Identifying Center Cowl Grille, Hook A, Pin B And Cowl Grille
    G08153142
  4. Remove the center cowl grille from the cowl grille.
  5. Install in the reverse order of removal.
