Front Door Latch And Lock Actuator Inspection

The following actuator and switches are integrated with the front door latch and lock actuator. Inspect the front door latch and lock actuator according to each inspection procedure for the following items.
- Front door lock actuator (See FRONT DOOR LOCK ACTUATOR INSPECTION .)
- Door lock-link switch (See DOOR LOCK-LINK SWITCH INSPECTION .)
- Front door latch switch (See FRONT DOOR LATCH SWITCH INSPECTION .)
- Front door key cylinder switch (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION .)

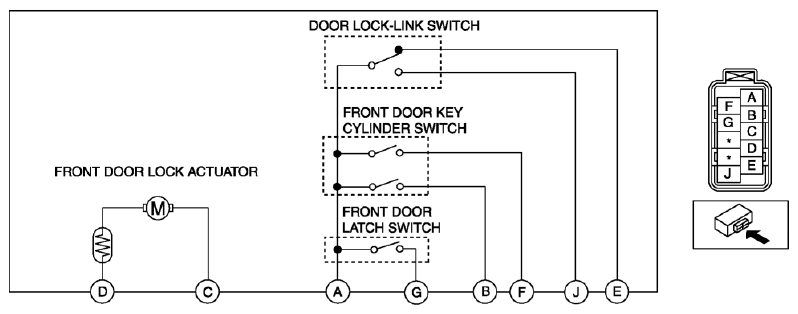

Fig 1: Front Door Latch And Lock Actuator Circuit Diagram (Driver Side)

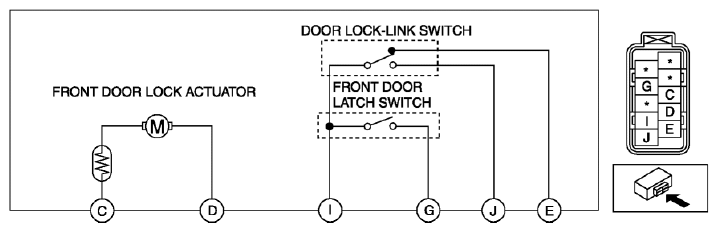

Fig 2: Front Door Latch And Lock Actuator Circuit Diagram (Front Passenger Side)
