Rear Wiper And Washer Switch Inspection

Disconnect the negative battery cable.
Remove the following parts:
1. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
2. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the rear wiper and washer switch terminals is as indicated in the table.
- If the continuity is not as indicated in the table, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

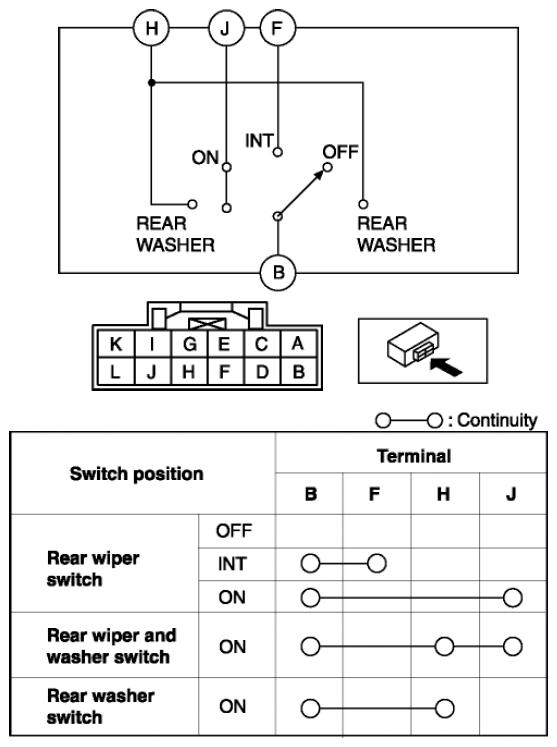

  Fig 1: Rear Wiper And Washer Switch Continuity Chart
