Wiper And Washer Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the wiper and washer switch connector.

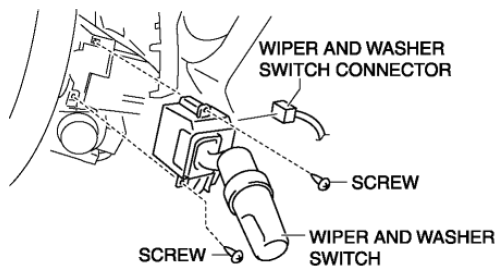

    Fig 1: Identifying Wiper And Washer Switch, Connector And Screws
    G08153420
  4. Remove the screws.
  5. Remove the wiper and washer switch.
  6. Install in the reverse order of removal.
