Cargo Compartment Light Inspection

  1. Disconnect the negative battery cable.
  2. Remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
  3. Verify that the continuity between the cargo compartment light terminals is as indicated in the table.

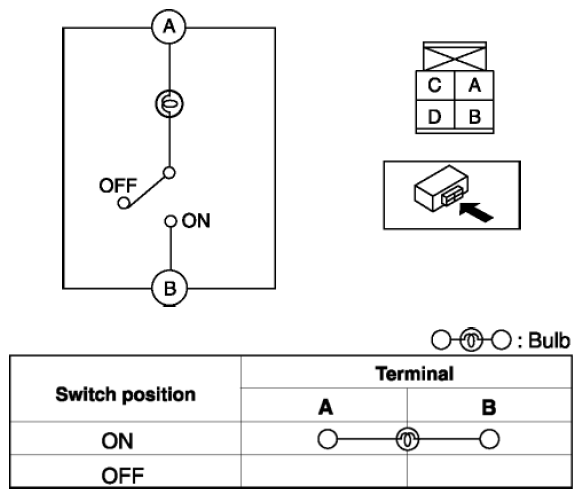

    Fig 1: Cargo Compartment Light Terminals Continuity Chart
    G08153375
    • If not as indicated in the table, replace the cargo compartment light.
