Cargo Compartment Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
  3. Remove the cargo compartment light bulb.

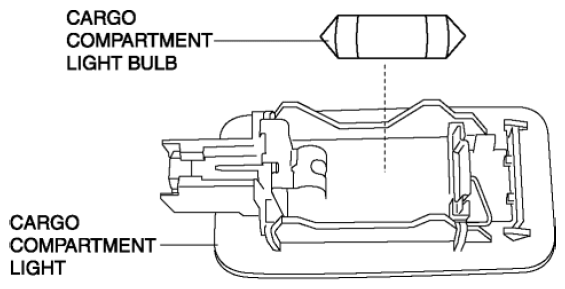

    Fig 1: Identifying Cargo Compartment Light And Bulb
    G08153374
  4. Install in the reverse order of removal.
