Knee Bolster Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Drive-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Drive-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    7. Drive-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the bolts.

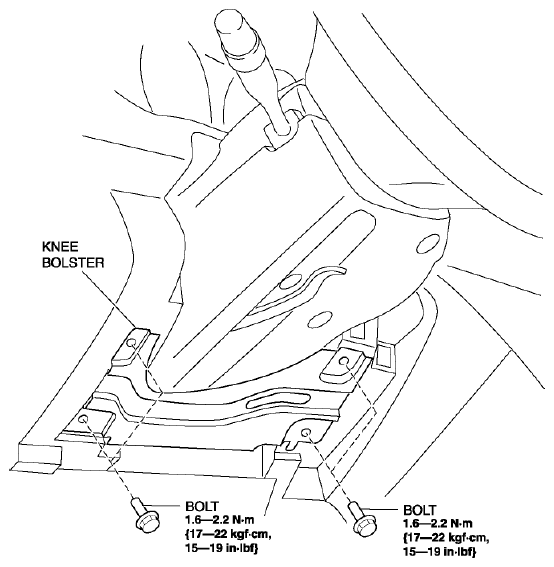

    Fig 1: Lnee Bolster And Bolts With Torque Specification
    G08144720
  4. Remove the knee bolster.
  5. Install in the reverse order of removal.
