Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the cap nut.

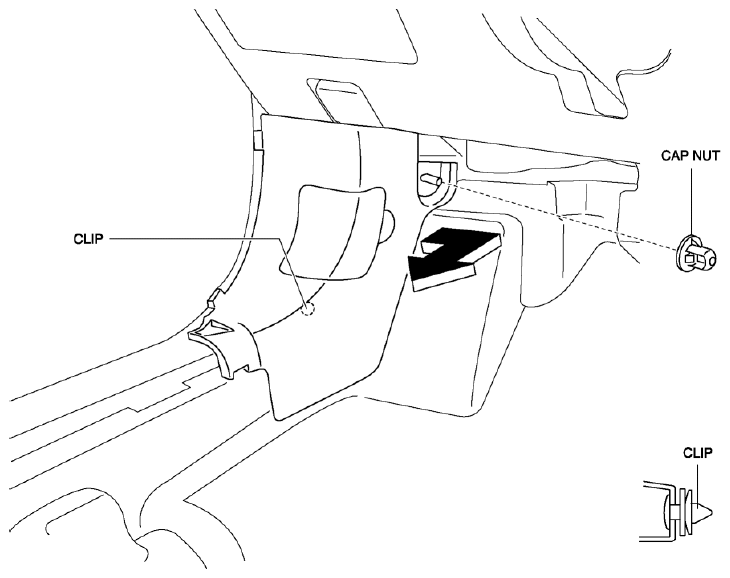

    Fig 1: Front Side Trim Mounting Components
    G08144743
  4. Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching clip.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.
