Rear Combination Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connectors shown in the figure and remove the nuts.

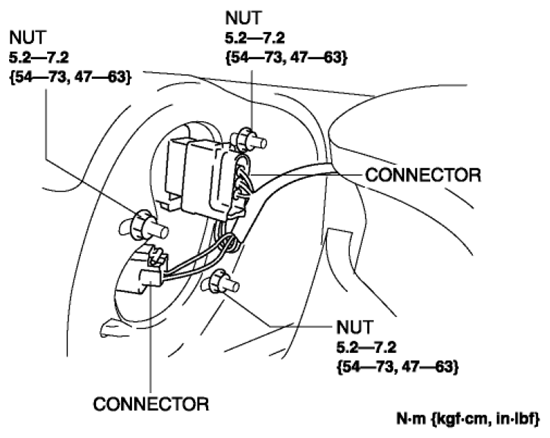

    Fig 1: Rear Combination Light Connectors And Nuts With Torque Specification
    G08144837
  5. Pull the rear combination light in the direction of the arrow to detach it from the tab.

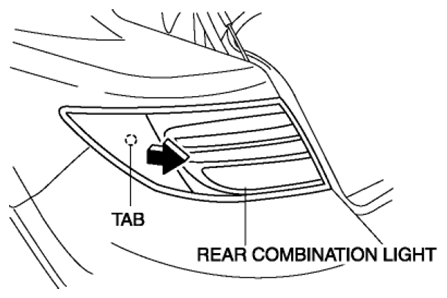

    Fig 2: Pulling Rear Combination Light Of Tab
    G08144838
  6. Remove the rear combination light.
  7. Install in the reverse order of removal.
